How to Use Flexbox in Divi 5: A Guide with Examples

Divi 5 has finally added native Flexbox support, and it’s a game changer for layout control in the Divi Builder.

In this article, we’ll walk through what Flexbox is, how it’s implemented in Divi 5, and show several practical examples — from simple column alignment to real-world layout scenarios.

What Is Flexbox?

Flexbox, or Flexible Box Layout, is a powerful CSS layout model that allows items within a container to automatically adjust and distribute space. It’s perfect for:

• Aligning items horizontally or vertically
• Creating responsive layouts
• Evenly spacing elements
• Wrapping content across lines

With Divi 5, you can now apply Flexbox directly within the Visual Builder — no need for custom CSS.

Getting Started with Flexbox in Divi 5

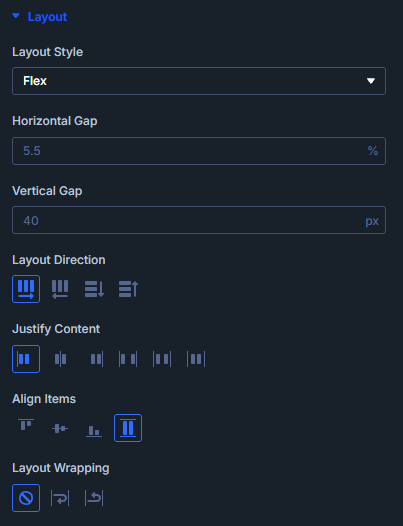

You’ll find the Flexbox settings under the Design tab of Rows and Columns.

1. Open the Row or Column settings.
2. Go to the Design tab → Layout.
3. Enable the Layout Style toggle and choose Flex.
4. New Flexbox options will appear, including:
   • Layout Direction (Row/Column)
   • Horizontal & Vertical Gaps
   • Justify Content
   • Align Items
   • Layout Wrapping

Let’s look at some practical examples.

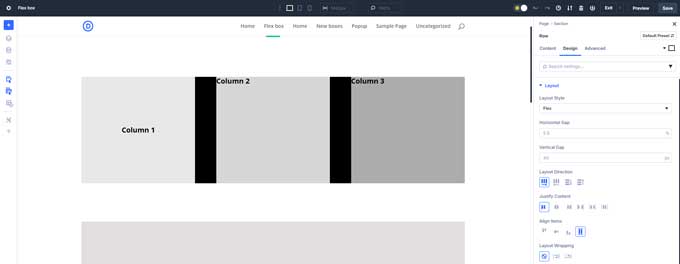

Example 1: 3-Column Layout

The Setup:

• A row with 3 columns, each containing a Text Module.
• Row and columns have background colors to show structure.

Steps:

1. Set the Row to Flex in the Design tab.
2. Adjust the Horizontal Gap to control space between columns.
3. Switch Layout Direction to Column to enable Vertical Gap.
4. Open a Column, enable Flex, and use Justify Content and Align Items to position the text.
5. On the Row level, use Align Items to control vertical alignment across columns.

Result: Precise control over spacing and vertical alignment — no custom CSS needed.

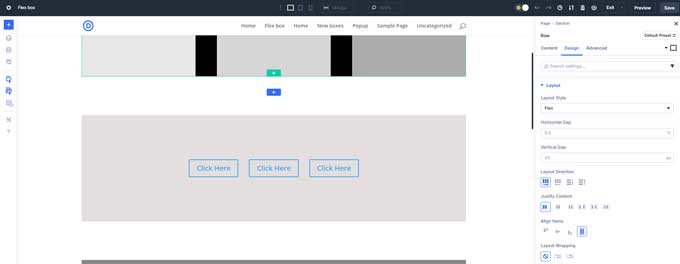

Example 2: Aligning Buttons Horizontally

The Setup:

• A one-column row with three button modules stacked vertically.

Steps:

1. Set the Row and then the Column to Flex.
2. Change Layout Direction to Row.
3. Use Justify Content to center the buttons or space them evenly.

Result: Buttons appear side-by-side, perfectly aligned.

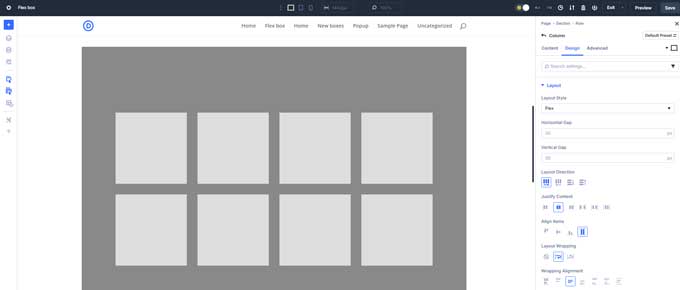

Example 3: Flex Wrapping

The Setup:

• A one-column row with eight text modules, each 200×200 pixels.

Steps:

1. Set the Row and Column to Flex.
2. Change Direction to Row. All boxes line up in one long line.
3. Enable Layout Wrapping.
4. Use Wrap Alignment and Align Items to center and position the wrapped boxes.

Result: The boxes wrap onto new lines and remain evenly spaced and centered.

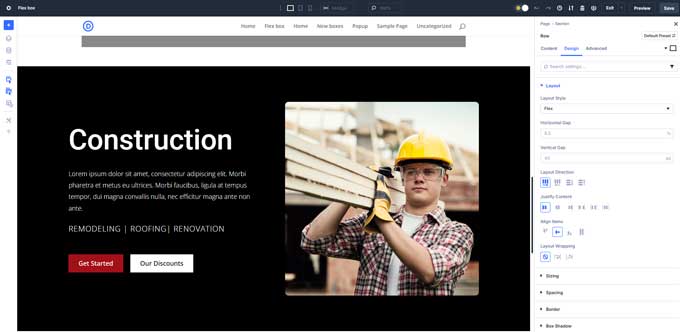

Live Example 1: Text + Image Layout

The Setup:

• Section with Text on the left, Image on the right, and two buttons under the text.

Steps:

For buttons:

• Enable Flex on the row and text column.
• Buttons align side by side automatically.
• Use Horizontal Gap to adjust spacing.

For centering layout:

• On the row level, set Align Items to Center.

Result: Text and image are perfectly centered, and the buttons are aligned.

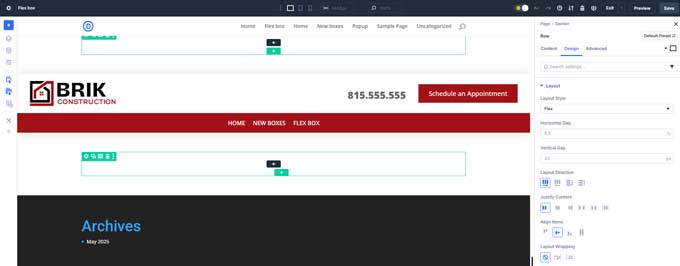

Live Example 2: Header with Logo and Call to Action

The Setup:

• Left column: Logo
• Right column: Text + Button

Steps:

1. Set the Row to Flex and Align Items to Center.
2. Set the Second Column to Flex.
3. Set Layout Direction to Row.
4. Use:
   • Justify Content → End
   • Align Items → Center
   • Horizontal Gap → 10

Result: A professional, centered header with aligned logo and CTA.

Final Thoughts

Flexbox in Divi 5 brings modern layout flexibility directly into the Visual Builder. Whether you’re building a hero section, pricing tables, or responsive buttons — Flex gives you precise control without writing a single line of CSS.

Key Takeaways:

• Enable Flex on both the parent and child elements.
• Use Layout Direction, Justify Content, and Align Items for full control.
• Use Wrapping when you have multiple elements in one line.
• Flex works great for buttons, cards, text/image layouts, and headers.
